Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 3.862"
Overall Length: 7.064"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Torque Specs: 20 in/lbs
Mounting Hardware: #8-40 X 1/4 Screws and T-10 Bit Included

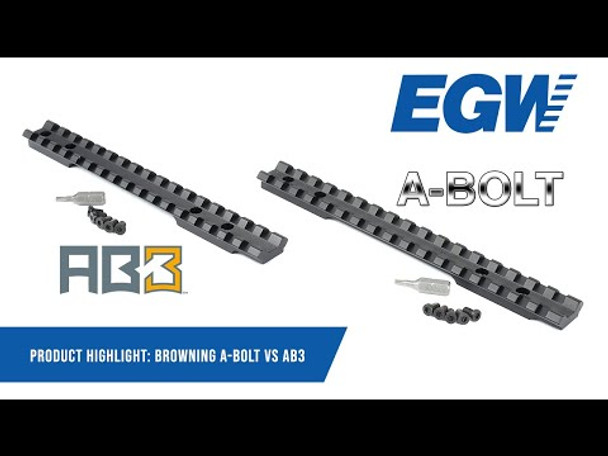

What is an A-Bolt? It could be an A-Bolt or an A-Bolt II or possibly even an AB3.
The A-Bolt was built in two main series. The original A-Bolt and the A-Bolt II. Both are very similar rifles and are considered part of a design family. The new AB3 — sometimes also referred to as an A-Bolt — is a different model and design. Accessories, such as bases and rings, magazines, etc. made for the original A-Bolt and A-Bolt II will not fit the AB3. All three of these designs are totally separate from the X-Bolt rifle as well.
This mount comes standard with a bevel on both sides making it ambidextrous.
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).
0 MOA - if shooting 0-500 yards
20 MOA - if shooting 500-1000 yards
When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.
The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
More Information GTIN 841370106127 Action Length Long Action Scope Mount Color Black Anodized Type II Firearm Model AB3 Long Action (A-Bolt 3 Uses #8 Screws) Firearm Manufacturer Browning Minute Of Angle (MOA) 20 MOA Do You Have A Springfield Prdigy No, I dont have a Prodigy this sear spring will work
