Machined From: Stainless Steel
Flange Length: .125"
Inner Diameter of Your Slide: .699" - this number corresponds to the outer diameter of the bushing
Outer Diameter of Your Barrel: .580" - this corresponds to the inner diameter of the bushing
Bore Type: Angle- a tighter fit is able to be achieved due to the angle bore
The EGW Monogram Bushing has the look of the EGW Carry Bevel Bushing combined with a solid spring plug that is longer to match the thick flange bushing. The combination makes for a very clean appearance.
We then took it up a notch and made a special bushing that has not only the carry bevel, but a radius at each side on the bottom. We wanted to offer custom engraving on the spring plug to make your gun unique to you, BUT... we found the spring plug rotates during firing! We then developed a matched bushing and spring plug pair where the bushing keys into the spring plug. Now, not only will the spring plug not be susceptible to wear from rotating around while shooting, but your custom logo will stay square and true.
Monogrammed bushing and spring plug sets are available in Stainless Steel and blued Carbon Steel.
NOTE: If you choose an already made spring plug such as any single letter of the alphabet or a smiley face-- type your request into the Spring Plug Design box (no extra charge). This includes all the plugs featured in the picture. Single letters of the alphabet are available in Stainless Steel ONLY. Picture spring plugs are available in both materials.
Available engravings on mono plugs include:
Git R Done
Marine Logo Filled
Marine Logo Outline
Skull and Crossbones
Air Force Logo
Coast Guard Logo
Gunsmith Fit is available in all O.D.'s with a .568" I.D. Straight Bore
O.D. of the bushing = Inside diameter of your slide - usually .699" - .705"
I.D. of the bushing = Outside diameter of your barrel - usually .575" - .583"

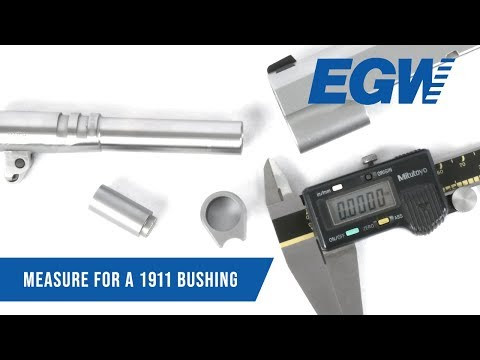

Please measure these two areas with calipers to find the sizes you need.
Please select your options carefully.
Check out our FAQ page for instructions on how to accurately take these measurements.
Please provide your exact measurements, as our machinist will allow for clearance.
Angle Bore is bored on an angle or a snug fit (measurements must be precise)
Straight Bore is bored straight without variation.
Please allow 3 weeks for custom bored bushings.Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
