Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing

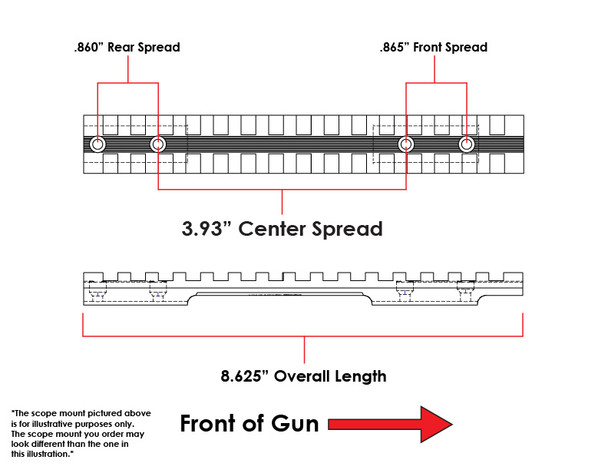

Center Spread: 3.930"
Overall Length: 8.625"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Torque Specs: 20 in/lbs

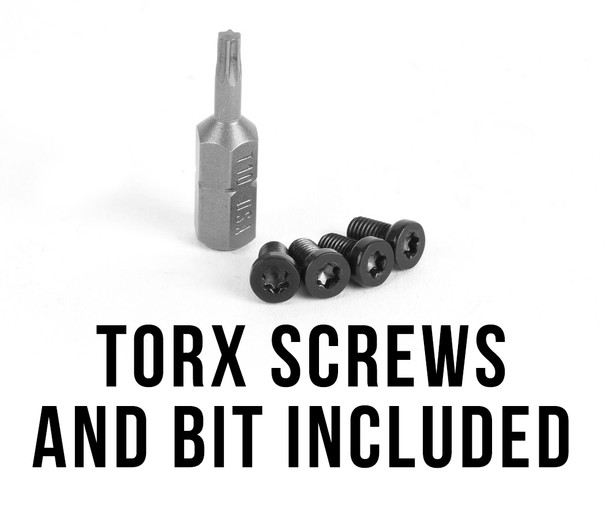

Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
This Savage base will work with any short action round back Savage rifle with an ejection port. It has an extra 3" over the front of the receiver.
Savages without an accu-trigger will require our flat back mount (listed separately).
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).

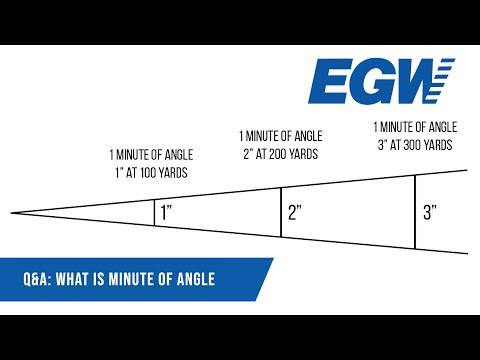

0 MOA - if shooting 0-500 yards
20 MOA - if shooting 500-1000 yards
When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.
The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
More Information GTIN 841370105427 Action Length Short Action Scope Mount Color Black Anodized Type II Firearm Model Round Back (Receiver) Short Action Model 10, 11, 12, 14, 16 (Some Newer Model 110s) Firearm Manufacturer Savage Minute Of Angle (MOA) 0 MOA Do You Have A Springfield Prdigy No, I dont have a Prodigy this sear spring will work
