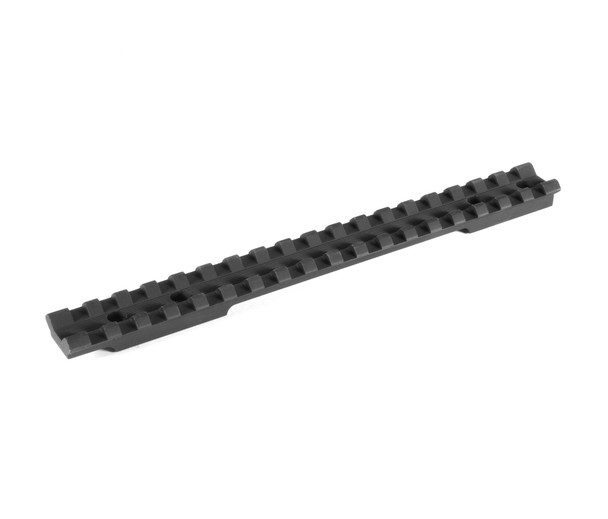

Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 4.630"
Overall Length: 7.458"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Torque Specs: 20 in/lbs

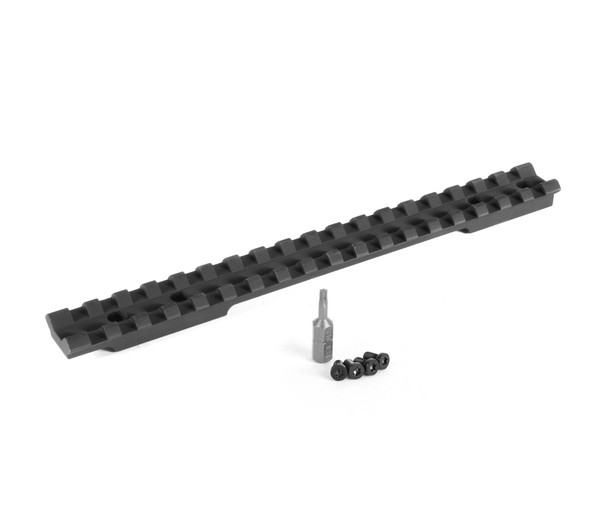

Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
Our Hunter Series and Heavy Duty mounts now all come with #6 and #8 screws. They are available here.
Due to the change in which receivers have #6 and #8 screws from Savage, we recommend you remove and measure one of the screws prior to purchasing our scope mount. This will ensure that you receive the correct screws necessary for your specific application. Some Savage guns (like the .338 Lapua or 110 BA) require 8-40 screws. We now have mounts drilled for #8 screws available for all MOAs. We also have a #8 Drill Out Kit available for customers who would like to drill the mounts out themselves. If you have questions about your specific firearm, or need help regarding the specific screw size, you should contact Savage Customer Support at (413) 568-7001 or (800) 370-0708 and supply them with your serial number.
This mount is drilled for and provided with 6-48 Hex Head screws. We recommend reviewing our listing below for predrilled #8 mounts if you require #8 screws. Our 8-40 and 6-48 screws utilize the same head design, which allows us to use the same countersink in all of our mounts. If you purchased a mount with the incorrect screws, you can purchase our #8 Drill Out Kit.
Rifles requiring #8 screws (please check your individual rifle to be sure):
10/110 BA Stealth
10/110 Stealth Evolution
110 Ridge Warrior
110 Tactical Desert
110 Tactical LH
Christensen Arms Ridgeline (Please Check Your Serial Number Here)
#6 Screws - .13" diameter
#8 Screws - .16" diameter
This mount does NOT fit the 212
The 212 mount is available here.
Our Savage bases will work with any long action round back Savage rifle with an ejection port. It is alsocompatible with the Stevens Long actions.
The round back on this mount will accommodate rounded receivers, and guns that have an accu-trigger.
Savages without an accu-trigger will require our flat back mount (listed separately).
This mount comes standard with a bevel on both sides making it ambidextrous.
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).
0 MOA - if shooting 0-500 yards
20 MOA - if shooting 500-1000 yards
When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.
The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
Picatinny rails are commonly misspelled as to as:
picanty railWarning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
More Information GTIN 841370105472 Action Length Long Action Scope Mount Color Black Anodized Type II Firearm Model Model 220, Round Back (Receiver) Long Action Model 110, 111, 114, 116 Firearm Manufacturer Savage Minute Of Angle (MOA) 0 MOA Do You Have A Springfield Prdigy No, I dont have a Prodigy this sear spring will work
