Steel HD Savage Short Action Round Back Picatinny Rail 20 MOA
Mounting Hardware is Included
This mount fits:
Savage Model 10 with Accu-Trigger Short Action Round Rear Receiver
Savage Model 11 with Accu-Trigger Short Action Round Rear Receiver
Savage Model 12 with Accu-Trigger Short Action Round Rear Receiver
Savage Model 14 with Accu-Trigger Short Action Round Rear Receiver
Savage Model 16 with Accu-Trigger Short Action Round Rear Receiver
Savage Model 110 with Accu-Trigger Short Action Round Rear Receiver
Stevens Model 200 Short Action Round Rear Receiver
This mount does not fit:
Savage Edge
Savage Axis
Savage Axis II
Savage Model 25
Savage Short Actions with Flat Rear Receivers
Savage Medium Actions with Flat Rear Receivers
Savage Short Actions Drilled for #8 Screws
Please check your mounting screw diameter and hole spacing before placing your order to ensure you select the correct mount. Screw diameter and hole spacing information can be found in the description tab below.
-
Specifications
Machined From: Solid 4140 Steel
Finish: Parkerized

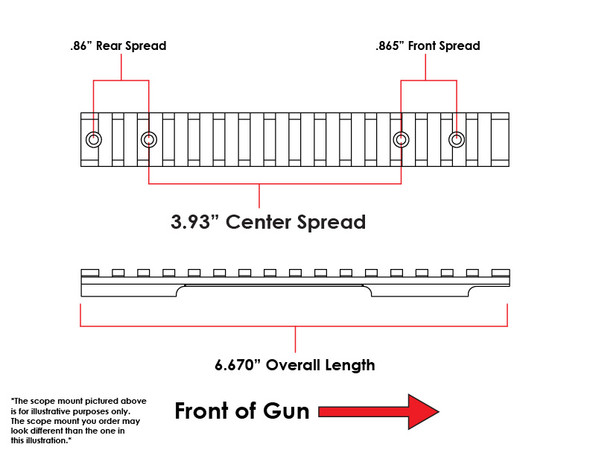

Center Spread: 3.93"
Overall Length of Mount: 6.670"
Height: .35" (Top of Receiver to Top of Picatinny)
Weight: 5.6 oz
Quick Disconnect Ring Compatible: Yes
Ambidextrous: Yes
Compatible with Picatinny or Weaver scope rings.
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
Torque Specs: 20 in/lbs -
Product Details
Due to the change in which receivers have #6 and #8 screws from Savage, we recommend you remove and measure one of the screws prior to purchasing our scope mount. This will ensure that you receive the correct screws necessary for your specific application. Some Savage guns (like the .338 Lapua or 110 BA) require 8-40 screws. We now have mounts drilled for #8 screws available for all MOAs. We also have a #8 Drill Out Kit available for customers who would like to drill the mounts out themselves. If you have questions about your specific firearm, or need help regarding the specific screw size, you should contact Savage Customer Support at (413) 568-7001 or (800) 370-0708 and supply them with your serial number.
This mount is drilled for and provided with 6-48 Hex Head screws. We recommend reviewing our listing below for predrilled #8 mounts if you require #8 screws. Our 8-40 and 6-48 screws utilize the same head design, which allows us to use the same countersink in all of our mounts. If you purchased a mount with the incorrect screws, you can purchase our #8 Drill Out Kit.
We do offer Savage rails that are pre-drilled for #8 screws. They are available here:
HD Savage Round Back Short Action 0 MOA Drilled for #8-40 Screws
HD Savage Round Back Short Action 20 MOA Drilled for #8-40 Screws
HD Savage Round Back Short Action 30 MOA Drilled for #8-40 Screws
HD Savage Round Back Short Action 40 MOA Drilled for #8-40 ScrewsRifles requiring #8 screws (please check your individual rifle to be sure):
10/110 BA Stealth
10/110 Stealth Evolution
110 Scout
110 Wolverine
10 GRS
110 Tactical
110 Tactical LH
110 Tactical Desert
110 Ridge Warrior
110 Ultralite
Christensen Arms Ridgeline (Please Check Your Serial Number Here)
Screw Diameters
#6 Screws - .13" diameter
#8 Screws - .16" diameterWe recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
This mount is a Picatinny-style base and compatible with Picatinny or Weaver scope rings.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and parkerized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).
The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov. -
More Information
More Information Minute Of Angle (MOA) 20 MOA Firearm Brand Savage Model Round Back (Receiver) Short Action Model 10, 11, 12, 14, 16 (Some Newer Model 110s) Scope Mount Color Parkerized Action Length Short Action GTIN 841370109609 -
