Trijicon RMR / SRO, Holosun 407c / 507c Mount for Sig Sauer M17 / M18 Optics Ready
-
Overview
This mount fits:
Sig M17 (with Romeo1 PRO cut)
Sig M18 (with Romeo1 PRO cut)
Sig P320 X-Five Legion (with Romeo1 PRO cut)
Sig P320 X-Carry Optics Ready (with Romeo1 PRO cut and no rear sight cut)
Sig P320 X-Compact (with Romeo1 PRO cut and no rear sight cut)
This mount does not fit:
Any Sig P320 models with dovetail cut for rear sight
Sig P320 RX
Sig P320 RX X-Compact
Sig P320 X-Five (with Romeo1 cut)

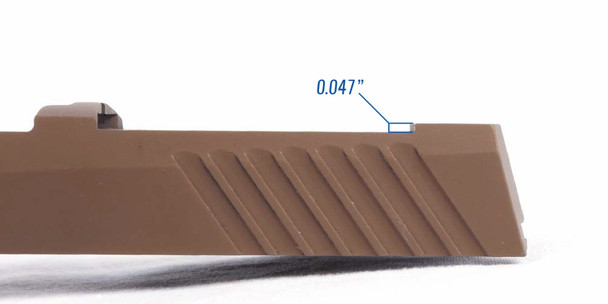

Sig M17 Military SurplusWe have found that minor fitting may be required to the rear step of the adapter plate due to slightly undersized cuts on Sig's slides. This can easily be done by filing on the rear step until the mount fits in the cut.
Check your Sig's dimensions here.
Save $20 and get free shipping when you purchase a Holosun Sight with this mounting plate!Please note: Trijicon recommends the use of a sealing plate to prevent water from entering their red dots.
-
Specifications
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 2.398"
Overall Width: .99"
Mounting Hardware:
(2) 6-32 Flat Head Screws
(2) 4-40 X 1/4 Socket Head Cap Screws
Red Dot Fitment: Trijicon RMR / SRO, Holosun HE407C / HE407C X2 / HE507C / HE507C X2 / HS407C / HS407C X2 / HS507C / HS507C X2, Swampfox Kingslayer / Liberty / JusticeOur red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.
-
Product Details
The rear sight plate on your gun needs to be removed to install your red dot on this plate. The plate is mounted to the slide from underneath the slide using the provided 4-40 screws. The red dot is then installed on top of the adapter plate using the provided 6-32 screws.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
Modification of your firearm may nullify the manufacturer's warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
2 Flat Head Cap Screws - Provided for Trijicon RMR
The screws that are included with this mount require a 5/64'' allen wrench for installation.
Click here to see a video from Vortex on how to install our red dot base on a slide.
Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov. -
More Information
More Information GTIN 841370112135 Scope Mount Color Black Hardcoat Anodized Type III Firearm Model M17, M18 Firearm Manufacturer Sig Sauer Red Dot Brand Holosun 407C / 507C / 508T, Swampfox Kingslayer / Liberty / Justice, Trijicon RMR / SRO -
