Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.811"
Overall Width: .99"
Torque Specs: 15 in/lbs
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-32 Set Screw
Red Dot Fitment:
Burris Fast Fire 1, 2, 3, 4
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot
Sightmark Core Shot
The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.
*All ADE mounts require 6-32 x 3/8" screws.
Please note: We have found that some red dots commonly found on Amazon such as the UTG and ADE may not hold the same tolerances as the red dots that this mount was initially created to work with. These dots may not fit properly on the posts on the plate. We would recommend either sending the red dot back for an exchange to whichever seller you purchased it from, or open up the holes in the bottom of the red dot to accommodate the pins.

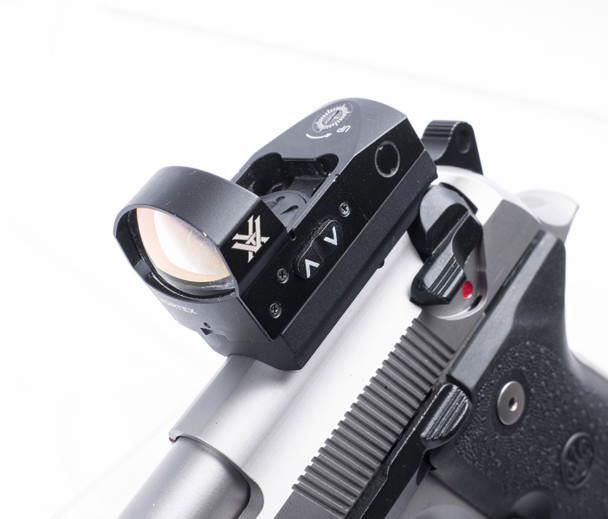

Do you need to install a red dot mount on your Beretta 92? Our red dot mount allows you to easily install a red dot on your Beretta. Our Beretta 92 red dot sights mounts are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.
Simply remove the rear sight on your gun and replace it with our mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights
2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights
2 Flat Head Cap Screws - Provided to mount the Plate to the Dovetail
The screws that are included with this mount require a 5/64'' allen wrench for installation.
Modification of your firearm may nullify the manufacturer's warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
Click here to see a video from Vortex on how to install our red dot base on a slide.Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
More Information GTIN 841370118878 Scope Mount Color Black Hardcoat Anodized Type III Model Model 92 Firearm Brand Beretta Red Dot Brand ADE RD3-001 / RD3-002 / RD3-006 / RD3-009 / RD3-012 / RD3-013 / RD3-015, Burris FastFire 1, 2, 3, 4, Crimson Trace CTS-1200 / CTS-1300, Docter, Vortex Venom / Viper
