Machined From: Solid 4140 Steel
Center Spread: 4.630"
Overall Length of Mount: 7.458"
Height: .35" (Top of Receiver to Top of Picatinny)
Weight: 5.6 oz
Quick Disconnect Ring Compatible: Yes
Compatible with Picatinny or Weaver scope rings.

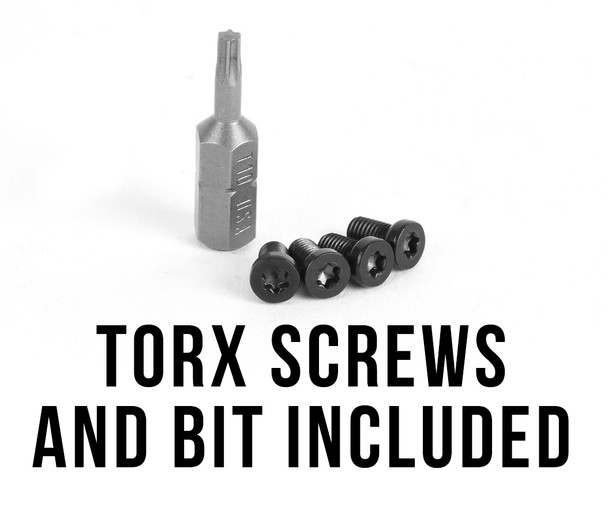

Mounting Hardware: #6-48 X 1/4 Screws, #8-40 X 1/4" Screws and T-10 Bit Included
Torque Specs: 20 in/lbs
86302 mounts manufactured after 01/2022 are drilled to accommodate larger diameter screws (#8-40) and now come with #6-48 and #8-40 screws. The head diameter on the #6-48 screws provided with this mount is larger than our normal #6-48 screws.
If you have questions about your specific firearm, or need help regarding the specific screw size, you should contact Savage Customer Support at (413) 568-7001 or (800) 370-0708 and supply them with your serial number.
The blue bag of screws provided are #6-48 screws.
The red bag of screws provided are #8-40 screws.
Rifles requiring #8 screws (please check your individual rifle to be sure):
10/110 BA Stealth
10/110 Stealth Evolution
110 Tactical LH
110 Tactical Desert
Christensen Arms Ridgeline (Please Check Your Serial Number Here)
#6 Screws - .13" diameter
#8 Screws - .16" diameter
This mount does NOT fit the 212
The 212 mount is available here.
Our Savage bases will work with any long action round back Savage rifle with an ejection port. It is alsocompatible with the Stevens Long actions.
The round back on this mount will accommodate rounded receivers, and guns that have an accu-trigger.
Savages without an accu-trigger will require our flat back mount (listed separately).
This mount comes standard with a bevel on both sides making it ambidextrous.
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
These bases sit at approximately 0.35" high.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The cross slots are also machined the full width of the mount and gauged to MIL-STD 1913 specs maintaining tolerances of +/-.002".
After machining; the mounts are sand blasted. The steel rails are Mil Spec parkerized for a durable rust resistant finish.
0 MOA -if shooting 0-500 yards
20 MOA -if shooting 500-1000 yards
When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.
Compatible with Picatinny or Weaver scope rings. Add EGW HD Scope Rings to make it a complete package!
From manufacturing to packaging, EGW products are made with pride in the USA.
Installation: EGW recommends 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
More Information GTIN 841370109623 Action Length Long Action Scope Mount Color Parkerized Firearm Model Round Back (Receiver) Long Action Model 110, 111, 114, 116 Firearm Manufacturer Savage Minute Of Angle (MOA) 20 MOA Do You Have A Springfield Prdigy No, I dont have a Prodigy this sear spring will work
